SolarAl's System
Alan has now become a TVA Green Power Provider!
On July 18, 2013 at 11:00am, KUB installed the meter that allowed SolarAl's system to start sending electricity to all of Tennessee. The 'HUGE' solar panel farm is generating around 1 watt per second!
TVA pays me the going rate, currently $0.10 per kWh generated, plus an addition $0.09 per kWh premium since I am a green power partner. My system will generate more
than half the energy I typically use in a year.
With the additional premium, I have estimated that my yearly bill will be around $400 (instead of $1800). Yea for almost free electricity! Yes...I choose to ignore the
cost of installing the system!
Update 12/24/20 -
We had problems with 1 panel (due to pesky squirrels) that finally is working again.
Our total generation of energy since 7/18/23 just hit 38.5 Mwh.
Our initial investment was $22,000, with rebate of $1,000 from TVA and $6,600 from federal tax credits made our investment $14,400
With the standard rate of ~$0.10 plus the bonus payments of $0.09/Kwh from TVA/KUB, in 5.5 years we've around made ~$7,315.
Usage for last 4 years -
Average monthly electric cost is $20.17
Start | End | Solar Gen | kWhG | Elec. | kWh | Total Elec. | Therm | Gas | Total Energy |
09/24/20 | 10/23/20 | $97.84 | 558 | $77.08 | 663 | $20.76 | 22 | $29.91 | $9.15 |
08/24/20 | 09/24/20 | $121.48 | 687 | $135.38 | 1323 | $13.90 | 17 | $24.37 | $38.27 |
07/24/20 | 08/24/20 | $120.32 | 679 | $159.32 | 1592 | $39.00 | 18 | $24.55 | $63.55 |
06/23/20 | 07/24/20 | $128.12 | 726 | $164.21 | 1662 | $36.09 | 20 | $26.45 | $62.54 |
05/22/20 | 06/23/20 | $137.69 | 782 | $133.00 | 1309 | $4.69 | 19 | $26.68 | $21.99 |
04/22/20 | 05/22/20 | $106.36 | 604 | $89.03 | 795 | $17.33 | 36 | $38.54 | $21.21 |
03/24/20 | 04/22/20 | $12.40 | 704 | $67.21 | 530 | $54.81 | 41 | $52.35 | $107.16 |
02/24/20 | 03/24/20 | $68.44 | 384 | $77.86 | 650 | $9.42 | 68 | $73.75 | $83.17 |
01/24/20 | 02/24/20 | $60.93 | 338 | $99.48 | 875 | $38.55 | 114 | $114.40 | $152.95 |
12/23/19 | 01/24/20 | $70.14 | 391 | $93.88 | 821 | $23.74 | 109 | $112.04 | $135.78 |
11/21/19 | 12/23/19 | $64.62 | 360 | $80.01 | 665 | $15.39 | 121 | $119.35 | $134.74 |
10/23/19 | 11/21/19 | $82.18 | 464 | $63.45 | 493 | $18.73 | 80 | $81.15 | $62.42 |
09/24/19 | 10/23/19 | $85.97 | 485 | $95.35 | 875 | $9.38 | 22 | $28.43 | $37.81 |
08/22/19 | 09/24/19 | $132.83 | 742 | $180.93 | 1819 | $48.10 | 19 | $25.69 | $73.79 |
07/24/19 | 08/22/19 | $131.65 | 728 | $132.10 | 1245 | $0.45 | 18 | $24.61 | $25.06 |
06/24/19 | 07/24/19 | $125.63 | 699 | $127.48 | 1209 | $1.85 | 18 | $25.22 | $27.07 |
05/22/19 | 06/24/19 | $138.97 | 779 | $111.37 | 1045 | $27.60 | 15 | $23.42 | $4.18 |
04/23/19 | 05/22/19 | $126.46 | 708 | $87.86 | 777 | $38.60 | 14 | $19.16 | $19.44 |
03/25/19 | 04/23/19 | $118.65 | 660 | $71.07 | 660 | $47.58 | 44 | $54.62 | $7.04 |
02/22/19 | 03/25/19 | $108.42 | 599 | $88.43 | 763 | $19.99 | 76 | $82.21 | $62.22 |
01/24/19 | 02/22/19 | $65.79 | 361 | $97.77 | 854 | $31.98 | 106 | $109.70 | $141.68 |
12/21/18 | 01/24/19 | $57.86 | 319 | $109.36 | 989 | $51.50 | 129 | $138.38 | $189.88 |
11/21/18 | 12/21/18 | $58.14 | 321 | $94.90 | 833 | $36.76 | 114 | $114.23 | $150.99 |
10/23/18 | 11/21/18 | $69.14 | 387 | $74.86 | 630 | $5.72 | 75 | $79.16 | $84.88 |
09/24/18 | 10/23/18 | $90.66 | 511 | $101.95 | 966 | $11.29 | 21 | $27.52 | $38.81 |
08/22/18 | 09/24/18 | $124.03 | 690 | $208.15 | 2124 | $84.12 | 21 | $27.49 | $111.61 |
07/24/18 | 08/22/18 | $112.23 | 623 | $180.11 | 1804 | $67.88 | 19 | $27.17 | $95.05 |
06/22/18 | 07/24/18 | $130.33 | 724 | $198.89 | 2015 | $68.56 | 21 | $29.03 | $97.59 |
05/23/18 | 06/22/18 | $128.54 | 714 | $154.62 | 1523 | $26.08 | 21 | $28.97 | $55.05 |
04/24/18 | 05/23/18 | $131.03 | 725 | $144.43 | 1,399 | $13.40 | 26 | $33.83 | $47.23 |
03/26/18 | 04/24/18 | $106.31 | 582 | $86.72 | 747 | $19.59 | 54 | $64.82 | $45.23 |
02/23/18 | 03/26/18 | $93.02 | 519 | $84.15 | 747 | $8.87 | 81 | $91.54 | $82.67 |
01/25/18 | 02/23/18 | $70.49 | 394 | $96.98 | 894 | $26.49 | 97 | $104.39 | $130.88 |
12/26/17 | 01/25/18 | $69.44 | 387 | $128.04 | 1,236 | $58.60 | 180 | $181.97 | $240.57 |
11/22/17 | 12/26/17 | $76.98 | 429 | $110.07 | 1,035 | $33.09 | 124 | $128.24 | $161.33 |
10/25/17 | 11/22/17 | $74.15 | 417 | $85.03 | 769 | $10.88 | 56 | $66.73 | $77.61 |
09/26/17 | 10/25/17 | $109.96 | 622 | $136.97 | 1,394 | $27.01 | 19 | $26.58 | $53.59 |
08/24/17 | 09/26/17 | $125.07 | 696 | $178.72 | 1,814 | $53.65 | 20 | $27.59 | $81.24 |
07/26/17 | 08/24/17 | $120.72 | 659 | $199.10 | 1,965 | $78.38 | 20 | $27.51 | $105.89 |
06/24/17 | 07/26/17 | $140.26 | 774 | $204.80 | 2,070 | $64.54 | 22 | $29.62 | $94.16 |
05/24/17 | 06/24/17 | $124.51 | 689 | $154.33 | 1,525 | $29.82 | 24 | $31.58 | $61.40 |
04/25/17 | 05/24/17 | $121.93 | 677 | $148.64 | 1,472 | $26.71 | 26 | $33.60 | $60.31 |
03/25/17 | 04/25/17 | $122.81 | 683 | $116.32 | 117 | $6.49 | 31 | $43.31 | $36.82 |
02/24/17 | 03/25/17 | $111.14 | 614 | $90.81 | 822 | $20.33 | 84 | $91.64 | $71.31 |
01/24/17 | 02/24/17 | $83.38 | 382 | $144.12 | 1,389 | $60.74 | 95 | $102.14 | $162.88 |
12/27/16 | 01/25/17 | $48.01 | 262 | $109.72 | 1,005 | $61.71 | 92 | $98.53 | $160.24 |
Total Usages | $4,605.03 | 26238 | $5,574.06 | 51909 | $969.03 | 2469 | $2,772.17 | $3,741.20 | |
Monthly Averages | $100.11 | $121.18 | $21.07 | $60.26 | $81.33 | ||||
Number Months | 46 |
Solar Generation per Enphase MicroInverters - last updated 11/5/15
Month | Power | Subtotals |
Jul-13 | 351.1 kwh | |
Aug-13 | 699.1 kwh | |
Sep-13 | 685.1 kwh | |
Oct-13 | 609.1 kwh | |
Nov-13 | 514.1 kwh | |
Dec-13 | 349.1 kwh | |
2013 Total | 3,207.1 kwh | |
Jan-14 | 513.1 kwh | |
Feb-14 | 493.1 kwh | |
Mar-14 | 664.1 kwh | |
Apr-14 | 714.1 kwh | |
May-14 | 811.1 kwh | |
Jun-14 | 695.1 kwh | |
Jul-14 | 762.1 kwh | |
Aug-14 | 727.1 kwh | |
Sep-14 | 667.1 kwh | |
Oct-14 | 561.1 kwh | |
Nov-14 | 485.1 kwh | |
Dec-14 | 288.1 kwh | |
2014 Total | 7,378.1 kwh | |
Jan-15 | 441.1 kwh | |
Feb-15 | 354.1 kwh | |
Mar-15 | 594.1 kwh | |
Apr-15 | 653.1 kwh | |
May-15 | 829.1 kwh | |
Jun-15 | 789.1 kwh | |
Jul-15 | 716.1 kwh | |
Aug-15 | 726.1 kwh | |
Sep-15 | 665.1 kwh | |
Oct-15 | 585.1 kwh | |
Nov-15 | 59.1 kwh | |
2015 SubTotal | 6,410.1 kwh | |
Total 11/3/15 | 16,995.1 kwh |
Solar Generation from KUB - updated 7/21/15
Date | kWh Used | Energy Cost | kWh Generated | Generated Credit | Cost / Credit | Other Info |
12/22/15 | $ | $ | $ | |||
11/22/15 | $ | $ | $ | |||
10/22/15 | $ | $ | $ | |||
9/22/15 | $ | $ | $ | 26th month | ||
8/22/15 | $ | $ | $ | 25th month | ||
7/22/15 | 1842 | $174.75 | 734 | $130.08 | $44.67 | 7/22/14 to 7/22/15 - Average cost per month = $ |
6/22/15 | 1540 | $150.83 | 753 | $134.63 | $16.20 | 23th month |
5/22/15 | 981 | $102.04 | 860 | $ | $ | 22th month |
4/22/15 | 568 | $62.40 | 647 | $50.86 | $11.54 | 21th month |
3/22/15 | 742 | $77.65 | 470 | $82.62 | $4.97 | 20th month |
2/22/15 | 1084 | $107.72 | 389 | $68.61 | $39.11 | 19th month |
1/22/15 | 1261 | $121.61 | $ | $ | 18th month | |
12/22/14 | 784 | $80.30 | 17th month | |||
11/22/14 | 557 | $62.55 | 502 | $88.93 | $26.38 | 16th month |
10/22/14 | 854 | $87.03 | 543 | $95.30 | $8.27 | 15th month |
9/22/14 | 1770 | $171.48 | 740 | $132.44 | $39.04 | 14th month |
8/22/14 | 1721 | $170.28 | 696 | $125.84 | $44.44 | 13th month |
1 Year | 17,505 | $1,535.41 | 7573 | $1,342.80 | $192.61 | Total Cost of Electricity for 1 year!! |
7/24/2014 | 1901 | $184.91 | 707 | $127.56 | $57.35 | 12th month |
6/23/2014 | 2345 | $224.07 | 778 | $140.05 | $84.02 | 11th Month - started using Basement Dehumidifier :( |
5/22/2014 | 1196 | $122.57 | 757 | $137.48 | $14.91 | 10th Month - 2nd best solar generation month so far |
4/23/2014 | 663 | $73.28 | 649 | $117.42 | $44.14 | 9th Month - Good weather |
3/25/2014 | 580 | $62.68 | 648 | $113.82 | $51.14 | 8th Month - Good weather |
2/24/2014 | 1104 | $106.94 | 481 | $84.22 | $22.72 | 7th Month |
1/24/2014 | 1288 | $120.81 | 492 | $85.46 | $35.35 | 6th Month |
12/23/2013 | 872 | $85.55 | 358 | $62.14 | $23.74 | 5th Month - Very overcast and lots of snow |
11/21/2013 | 608 | $63.55 | 523 | $90.55 | $27.00 | 4th Month - More rain! - First month we made more money than used! |
10/23/2013 | 1,241 | $114.25 | 597 | $102.92 | $11.33 | 3rd Month - More rain! |
9/24/2013 | 2,062 | $187.33 | 792 | $138.62 | $48.71 | 2nd Month - Very hot month for A/C and a lot less rain this month, but still a lot! |
8/22/2013 | 1,825 | $176.23 | 627 | $112.85 | $63.38 | 1st Month - Great start considering all the rain days! |
7/24/2013 | 1,820 | $177.91 | 164 | $29.71 | $148.20 | 1st Week |
7/17/2013 | Starting day of Henderson Solar Power System |
Real-time power generation statistics -
Here are some photos of the system -

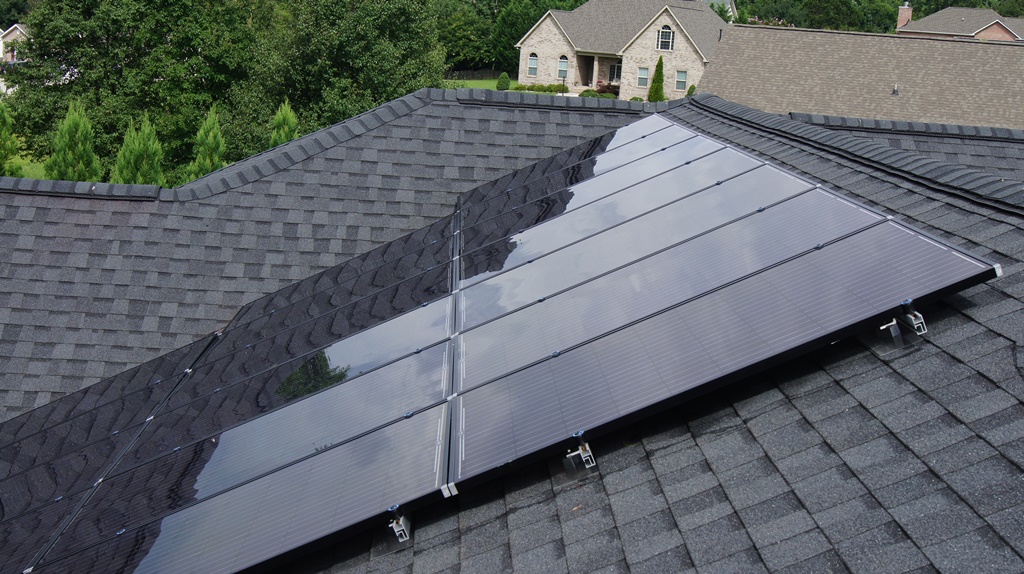

Picture from the backyard showing solar panels on the roof
Picture on the roof showing rack system before solar panels installed
Picture on the roof showing the solar panels
Picture of electric meter on left and solar panel meter on right
Picture of solar panel meter on first day showing 4 kWh generated (thats a big $.76!!)
